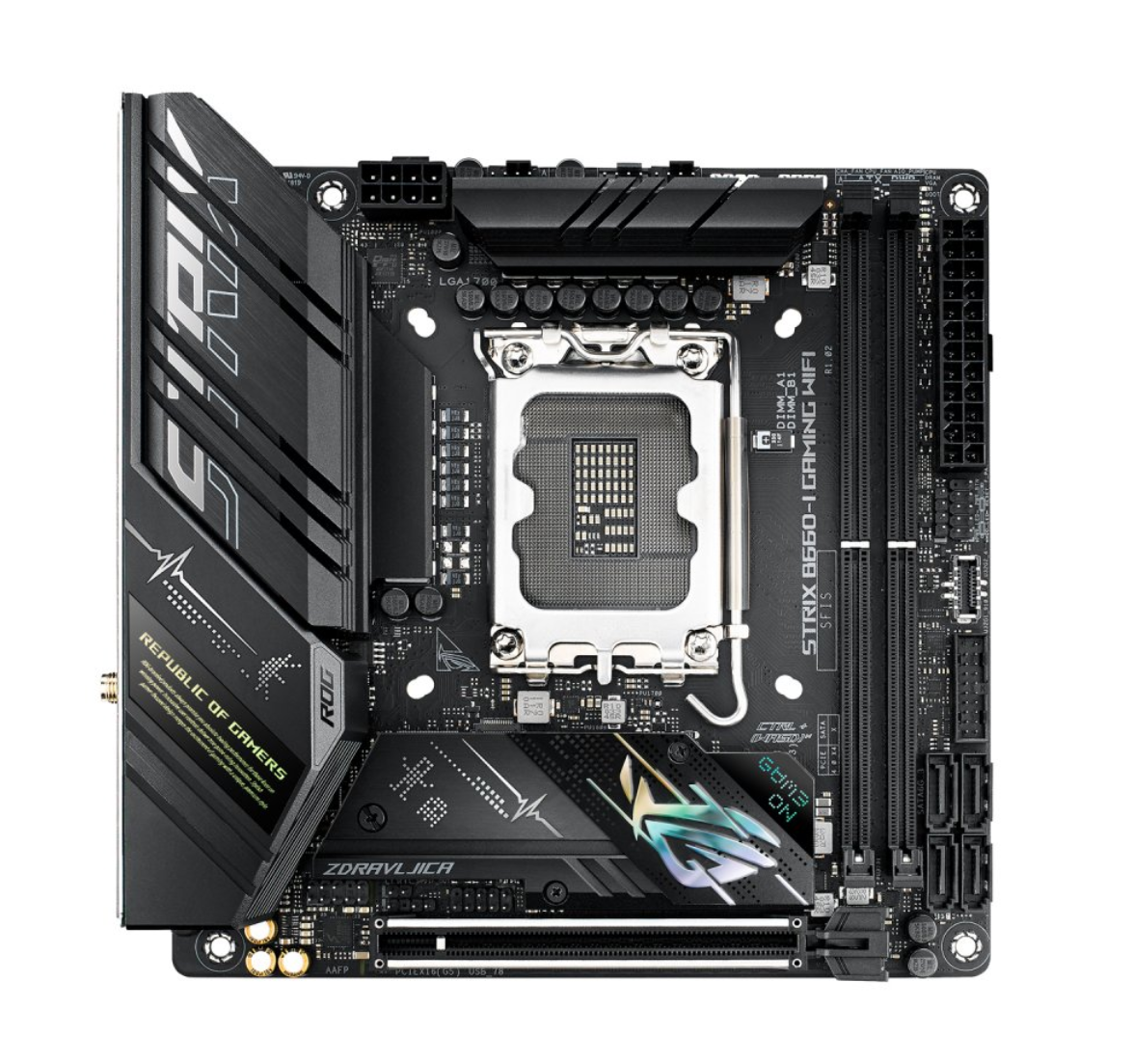

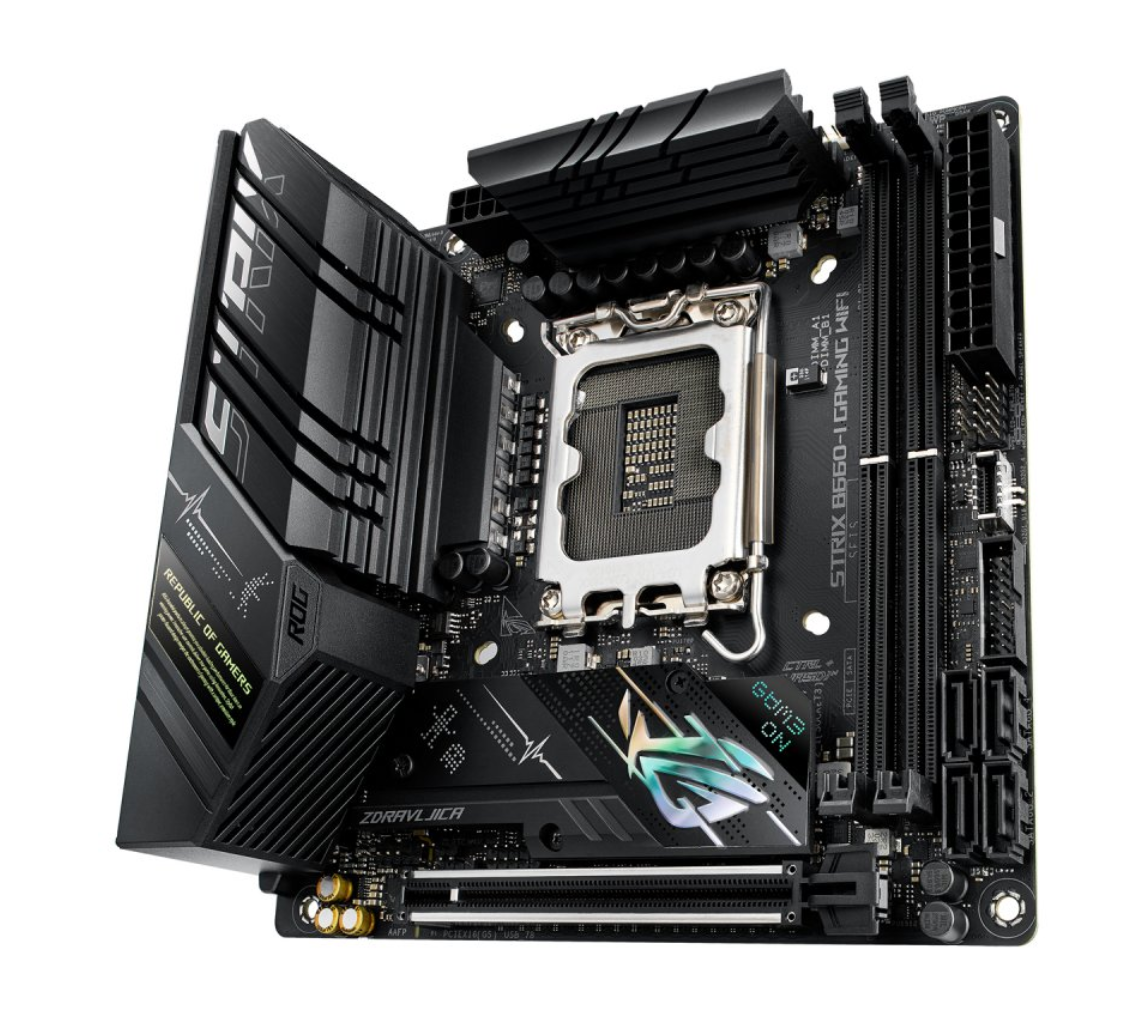

Asus ROG STRIX B660-I GAMING WIFI

UPC:195553514965

ASUS ROG Strix B660-I Gaming WiFi: Placa base gaming Intel® LGA 1700 ITX, 8+1 etapas de alimentación, soporte DDR5, PCIe® 5.0, Wi-Fi 6, LAN de 2,5 Gb, dos ranuras M.2, un disipador M.2 y Aura Syn

Características:
Zócalo LGA 1700 para la 12.ª Gen. de procesadores Intel® Core™, Pentium® Gold y Celeron®.
Solución de alimentación optimizada: 8+1 etapas de alimentación con tomas ProCool, chokes de aleación de alta calidad y condensadores resistentes para procesadores multinúcleo.
Diseño térmico optimizado: Cubierta de E/S y disipadores VRM con almohadilla térmica de alta conductividad, un disipador M.2 y una placa posterior M.2.
Redes de alto rendimiento: Wi-Fi 6 de Intel (802.11ax) y Ethernet de 2,5 Gb con ASUS LANGuard.
La mejor conectividad gaming: Soporta salida HDMI® 2.1 y DisplayPort™ 1.4, dos ranuras M.2 y USB 3.2 Gen. 2x2 de tipo C®.
Control inteligente: Funciones de refrigeración, redes y cancelación de ruido asistidas por IA para simplificar la configuración y mejorar el rendimiento.
DIY fácil: M.2 Q-Latch, escudo de E/S y Q-LED.
Personalización inigualable: Iluminación RGB Aura Sync exclusiva de ASUS con un conector RGB y un conector RGB Gen. 2 direccionable.
El sonido líder de la industria gaming: Códec SupremeFX S1220A con amplificador Savitech SV3H712, cancelación de ruido bidireccional con IA, DTS® Sound Unbound™ y Sonic Studio III.
Software de calidad: Prueba gratuita AIDA64 Extreme de 60 días y el intuitivo panel de control UEFI BIOS con MemTest86.
Especificaciones:
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® B660 Chipset
Memory
2 x DIMM, Max. 64GB, DDR5 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel®12th Gen Processors*
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports****
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header support additional 2 USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

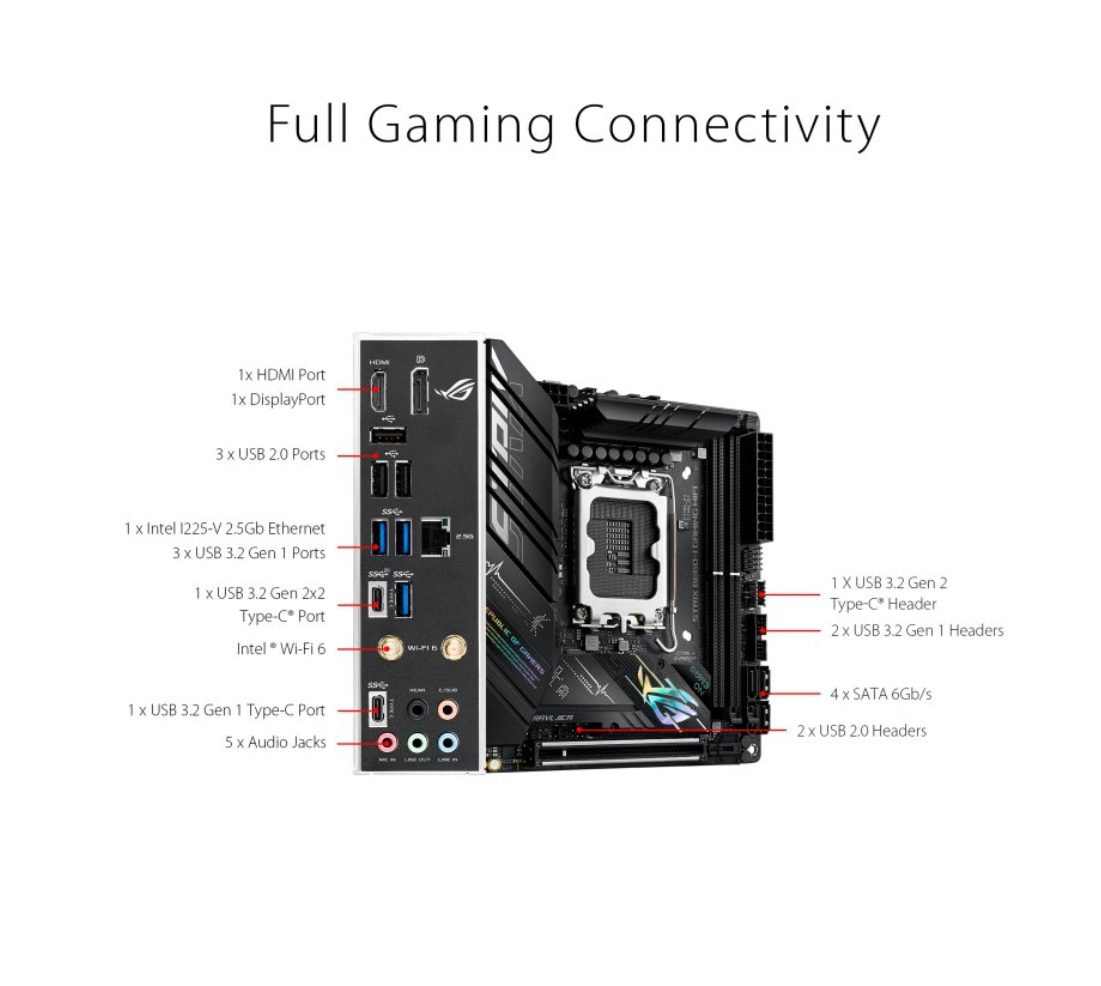

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Audio jacks
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
1 x 4-pin AIO Pump header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
-CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 RGB header
Software Features
ROG Exclusive Software
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

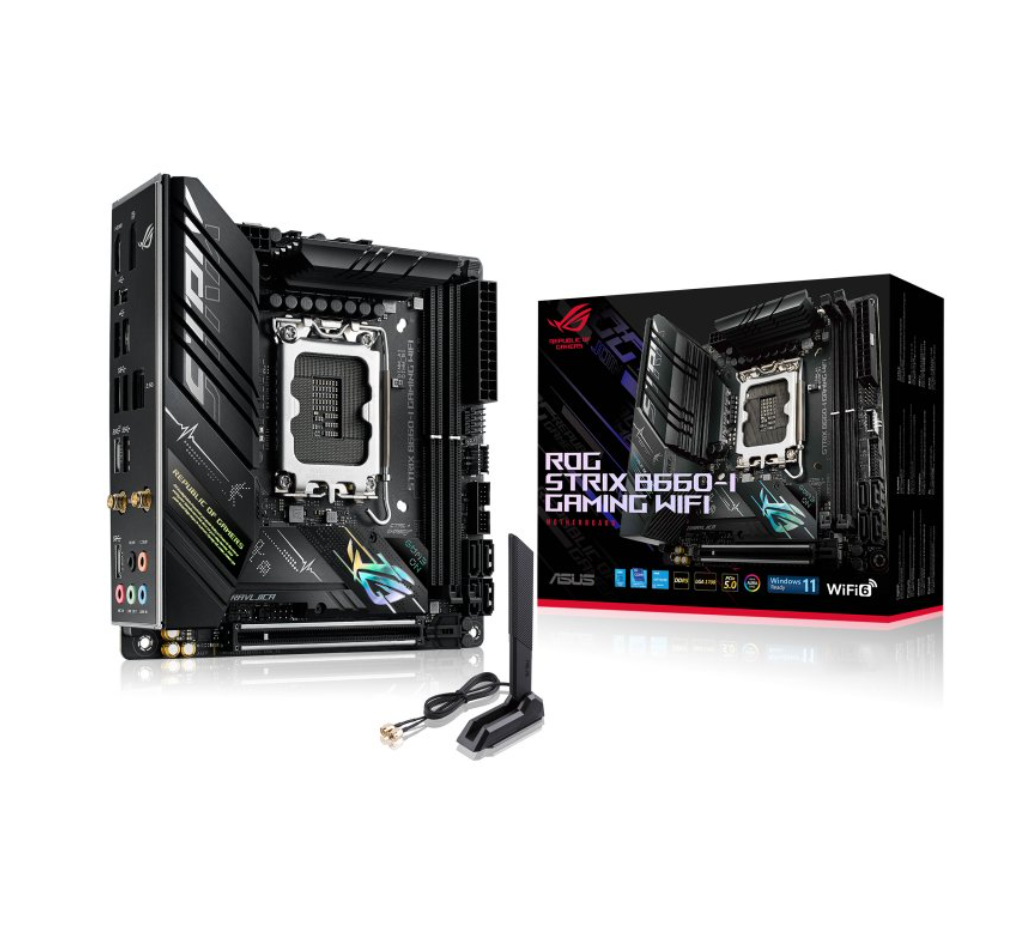

Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable tie
2 x M.2 SSD screw packages
1 x M.2 bracket
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
